Supreme 10-80

Product Description

UPS FEATURES

• Large LCD screen with graphic display and improved high output power factor at 0.9
• Can configure as Frequency Converter 50Hz to 60Hz or vice versa
• Reliable, filtered, stabilised and regulated sinewave output (double conversion on-line technology VFI according to EN50091-3 specications) with lters for atmospheric disturbance suppression
• High reliability: IGBT technology, full microprocessor control with no-break static and manual bypasses, extremely high short-circuit current to ensure compatibility with the most diffcult
  transformer applications (lighting, drives and industrial processes) and an isolation transformer on the inverter output
• Maximum reliability and power availability – connect up to 8 units in parallel or N+1 redundancy, even of different power ratings (optional)
• Low input total harmonic distortion (<5%) (optional)
• High level diagnostics: event log with 128 messages, states, measurements and alarms – available from the built-in LCD in several languages
• Low loss high efficiency up to 98% in ECO-Mode for all Supreme models
• Simple to install:
  1. Capability to install the UPS into any distribution system (neutral not required on rectier input)
  2. Capability to separate the rectier/bypass power networks and of powering these from two separate sources, without galvanic isolation (necessary on those UPS without an output transformer)
• Capability of regulating the output voltage (to offset voltage drops down long cable runs)
• Built-in automatic and manual battery test feature, battery deepdischarge protection and temperature compensating charger
• BACK FEED protection: to avoid energy feeding back into the mains supply should a fault occur.

APPLICATIONS

1. Electro-medical equipment;
2. Data centres;
3. Transportation equipment;
4. Controls and instrumentation
5. Security systems;
6. Light manufacturing industry;
7. Emergency lightings
8. Laboratory equipment etc.

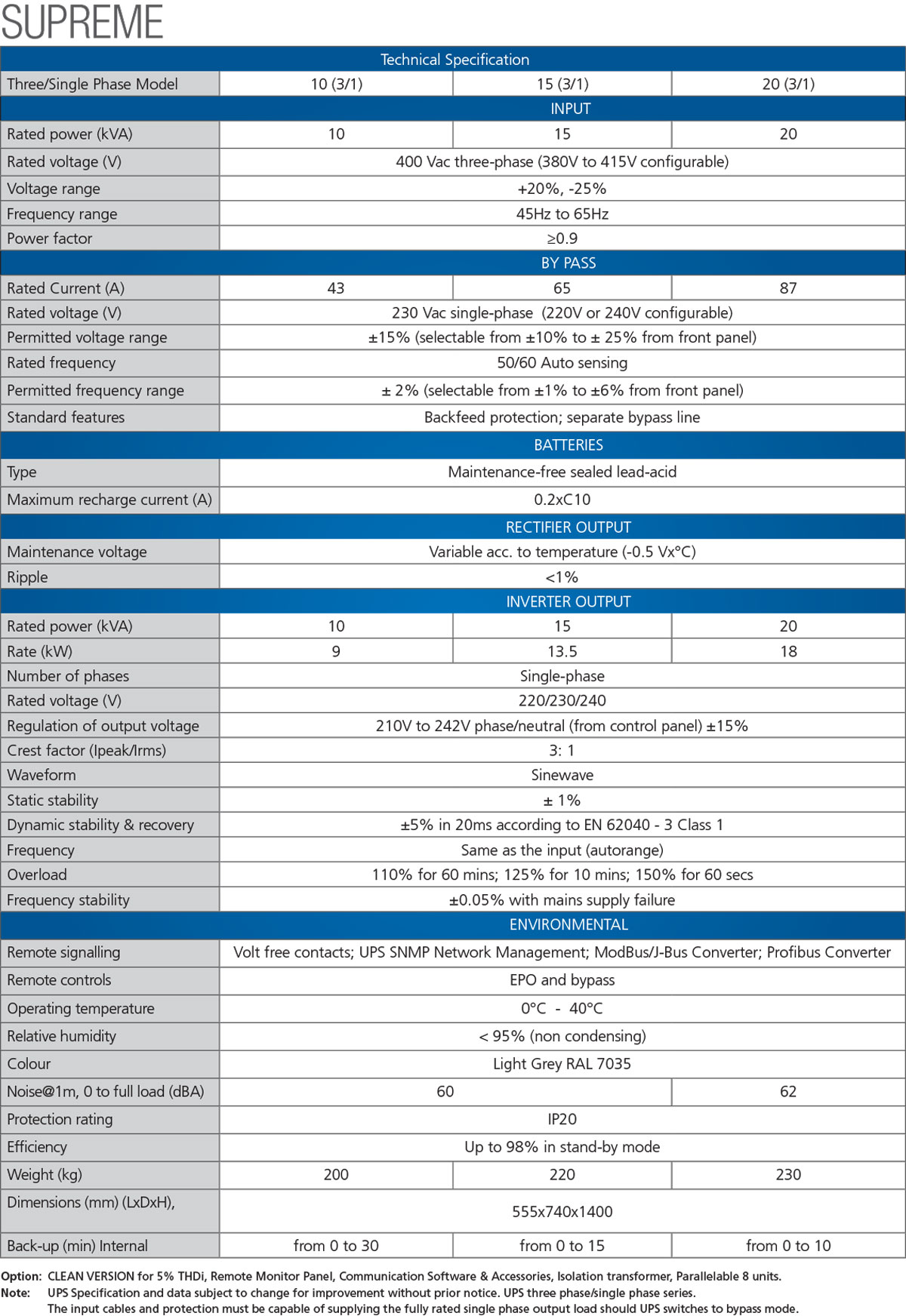

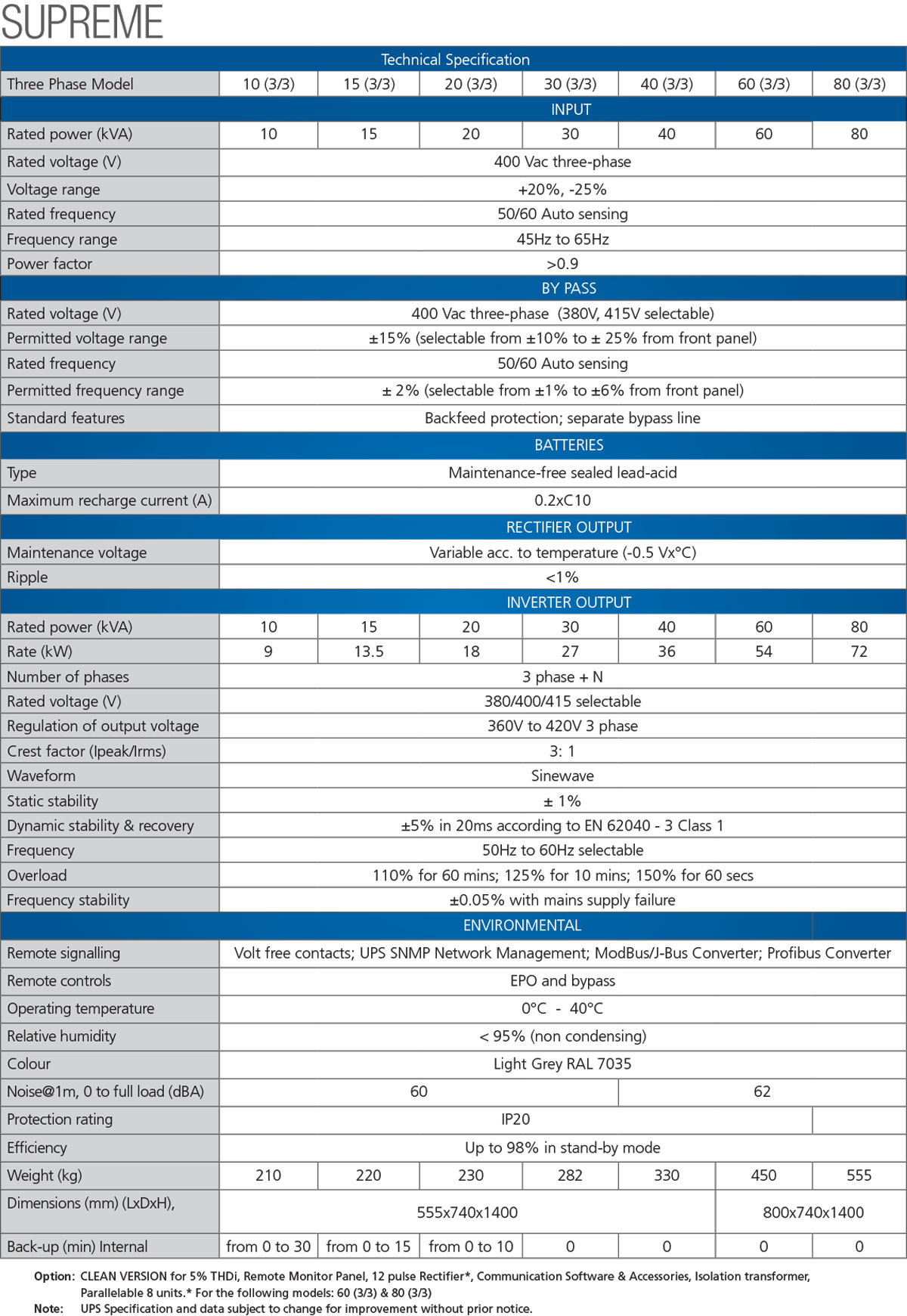

SUPREME 10-80 Catalogue
