MasterNOVA Pro
The MasterNOVA Pro UPS is one of the best performing and reliable UPS from GTEC, providing power protection over a wide range of applications.

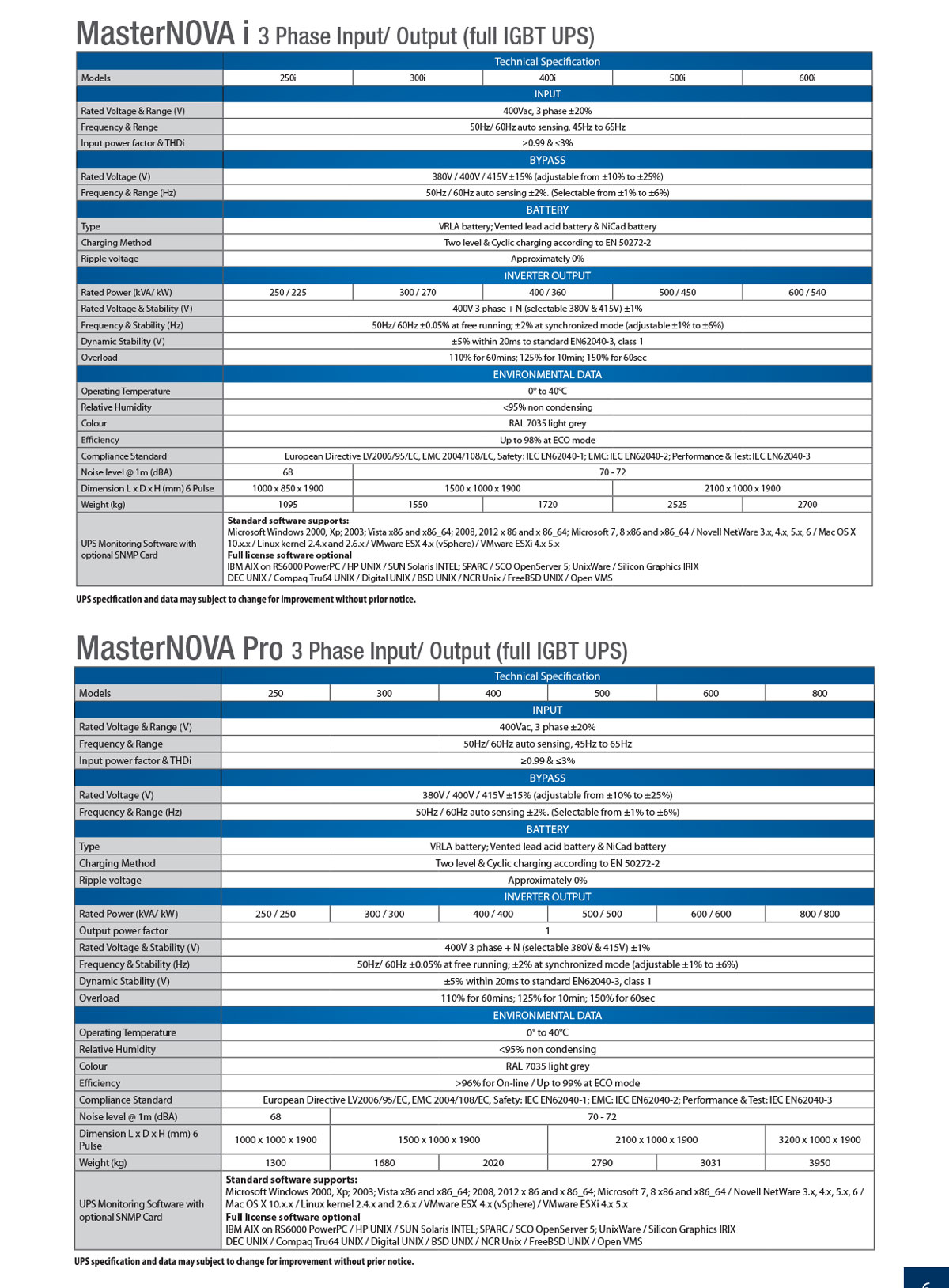

The MasterNOVA series offers the following range of products: MasterNOVA 30, 40, 60, 80, 100kVA (3/1) 3 phase/ 1 phase; MasterNOVA Pro 250i, 300i, 400i, 500i, 600i kVA (3/3) 3 phase/ 3 phase; MasterNOVA Pro 250, 300, 400, 500, 600, 800 kVA (3/3) 3 phase/ 3 phase.
Product Description
UPS FEATURES
- High AC/AC UPS efficiency with >95% at 75% load for MasterNOVA Pro; and >94% for the rest of the models.
- Low input current THDi ≤3% and close to unity input power factor (0.99 pf)
- Unique parallel technology for Centralized Parallel or Di-centralized (Distributed) Parallel solution
- Up to 8 units can be paralleled for (N+1) redundancy to achieve maximum reliability and power availability.
- Centralized Bypass Cabinet capacity range from 800-1200-1600-2000-3000kVA
- Energy saving mode allow automatic selection to turn-on or turn-off the paralleled UPS in the event of excess UPS capacity;
- UPS Group Synchronizer (UGS) and Parallel System Joiner (PSJ)
- DSP controller IGBT Rectifier and IGBT Inverter, guarantees maximum faster respond time; high performance and high quality power over all range of application.
- User friendly mimic panel; designed with 5” graphical display panels provides easy Humen-Machine Interfacing (HMI) and simplified navigaton; 6 LED’s for quick glance of UPS status and 8 push buttons.
- Customized solution for IP31/ IP42 / Top Cable Entry cabinet.
- 6 operating modes: On-line / Standby-On (Eco) / Smart Active / Standby-Off / Frequency Converter / Stabilizer
APPLICATIONS
- Medical & Health care application for Ultrasound, MRI machines; CT Scanners and X-ray machines.
- Data Center and large server rooms application, such as: stock exchange, nancial institutions.
- Transportations application, such as: air & sea traf c controls; railways signaling and tunnel lightings.
- Telecommunications
- Manufacturing and Industrial application; such as: PLC & process controller; Robotics
